PG系列中小型雙段火燃氣燃燒器
以天然氣（NG、LNG）、液化石油氣（LPG）作為燃料，全自動雙段火（大、小火）方式控制，可根據設備負荷控制進行大/小自動切換，滿足較高精度負荷控制需求。
廣泛應用于中小型鍋爐、加熱爐、噴涂設備、烘干設備、熱處理設備等熱能設備，實現有一定負荷控制精度要求的應用。
一．安全可靠的全自動程序控制
1. 全自動程序控制運行，可根據負荷參數設定控制大/小火切換，實現出力大小的自動控制；
2. 采用離子感應或UV紫外監測裝置實現意外熄火保護功能，保證火焰燃燒安全穩定；
3. 配置燃氣壓力和空氣壓力安全保護開關，同時可方便地實現外部連鎖控制，確保運行安全；
二.良好的燃燒性能
1.大/小火狀態燃燒量在處理范圍內可自由設定，負荷輸出控制更靈活方便；
2.大/小火切換時風量可根據設定自動同步調節，保證大/小火狀態下都實現最佳燃燒狀態；
三.可靈活增加的配置
1.可通過增加配置比例式調節裝置實現中小型燃燒器的比例控制，滿足更高精度負荷控制的要求；
2.可通過增加配置燃氣調壓和過濾裝置適應不同的起源供應方式；
|

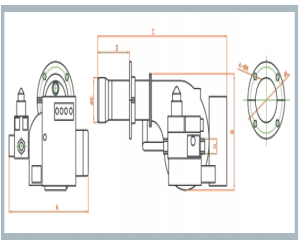

型號
|
A
|
B
|
C
|
D
|
E
|
G(/N,/L,/C)
|
L
|
M
|
||
|
PG23W
|
550
|
375
|
610
|
100-240
|
133
|
1”
|
1”
|
--
|
165-195
|
12(M10)
|
|
PG40W
|
655
|
430
|
950
|
150-350
|
170
|
1 1/2”
|
1”
|
1 1/2”
|
185-225
|
14(M12)
|
|
PG60W
|
780
|
515
|
1205
|
170-400
|
170
|
1 1/2”
|
1”
|
2”
|
185-225
|
14(M12)
|
|
PG80
|
780
|
515
|
1270
|
220-440
|
205
|
1 1/2”
|
1 1/2”
|
2”
|
240
|
18(M16)
|
|
PG100
|
780
|
515
|
1295
|
220-440
|
230
|
1 1/2”
|
1 1/2”
|
DN65
|
276
|
18(M16)
|
|
PG120
|
830
|
530
|
1350
|
240-460
|
230
|
2”
|
1 1/2”
|
DN65
|
276
|
18(M16)
|
|
PG150
|
830
|
530
|
1450
|
240-460
|
230
|
2”
|
1 1/2”
|
DN80
|
276
|
18(M16)
|
|
PG200
|
985
|
860
|
1480
|
300-500
|
190
|
2”
|
1 1/2”
|
DN80
|
240
|
18(M16)
|
|
PG250
|
985
|
890
|
1480
|
300-500
|
190
|
DN65
|
2”
|
DN100
|
240
|
18(M16)
|
PG系列中小型雙段火燃氣燃燒器技術參數
|
型號
|
PG23W/N
|
PG40W/N
|
PG60W/N
|
PG80/N
|
PG100/N
|
PG120/N
|
PG150/N
|
PG200/N
|
PG250/N
|
||
|
輸出功率
|
Kw
|
93-267
|
174-464
|
232-696
|
348-928
|
464-1160
|
580-1392
|
696-1740
|
812-2320
|
928-2900
|
|
|
萬Kcal/h
|
8-23
|
15-40
|
20-60
|
30-80
|
40-100
|
50-120
|
60-150
|
70-200
|
80-250
|
||
|
控制方式
|
全自動雙段火控制（可接受比例控制方式調節訂貨）
|
||||||||||
|
適用燃氣
|
天然氣（NG、LNG）
|
||||||||||
|
標準入口壓力
|
Pa
|
2000
|
5000
|
||||||||
|
MmH2O
|
200
|
500
|
|||||||||
|
適應壓力
|
Pa
|
1500-5000
|
4000-10000
|
||||||||
|
MmH2O
|
150-500
|
400-1000
|
|||||||||
|
設計燃料低熱值
|
MJ/NM3
|
35.53(8500Kcal/Nm3)
|
|||||||||
|
適應環境溫度
|
攝氏度
|
-15~60
|
|||||||||
|
火焰監測方式
|
電離型
|
UV紫外型
|
|||||||||
|
適用電源
|
AC220V
|
AC380V
|
|||||||||
|
電機功率
|
KW
|
0.25
|
0.55
|
1.1
|
1.5
|
2.2
|
2.2
|
3.0
|
4.0
|
4.0
|
|
|
防護等級
|
IP
|
40(可根據訂貨要求提高)
|
|||||||||
|
安裝法蘭形式
|
滑動可調式法蘭
|
||||||||||
|
助燃空氣量調節方式
|
同步伺服電動調節
|
||||||||||
|
燃氣入口接口尺寸
|
1”
|
1 1/2”
|
1 1/2”
|
1 1/2”
|
1 1/2”
|
2”
|
2”
|
2”
|
DN65
|
||
|
型號
|
PG23W/N
|
PG40W/N
|
PG60W/N
|
PG80/N
|
PG100/N
|
PG120/N
|
PG150/N
|
PG200/N
|
PG250/N
|
||
|
輸出功率
|
Kw
|
93-267
|
174-464
|
232-696
|
348-928
|
464-1160
|
580-1392
|
696-1740
|
812-2320
|
928-2900
|
|
|
萬Kcal/h
|
8-23
|
15-40
|
20-60
|
30-80
|
40-100
|
50-120
|
60-150
|
70-200
|
80-250
|
||
|
控制方式
|
全自動雙段火控制（可接受比例控制方式調節訂貨）
|
||||||||||
|
適用燃氣
|
液化石油氣（LPG）
|
||||||||||
|
標準入口壓力
|
Pa
|
2800
|
5000
|
||||||||
|
MmH2O
|
280
|
500
|
|||||||||
|
適應壓力
|
Pa
|
2000-5000
|
4000-10000
|
||||||||
|
MmH2O
|
200-500
|
400-1000
|
|||||||||
|
設計燃料低熱值
|
MJ/NM3
|
100.32(24000Kcal/Nm3)
|
|||||||||
|
適應環境溫度
|
攝氏度
|
-15~60
|
|||||||||
|
火焰監測方式
|
電離型
|
UV紫外型
|
|||||||||
|
適用電源
|
AC220V
|
AC380V
|
|||||||||
|
電機功率
|
KW
|
0.25
|
0.55
|
1.1
|
1.5
|
2.2
|
2.2
|
3.0
|
4.0
|
4.0
|
|
|
防護等級
|
IP
|
40(可根據訂貨要求提高)
|
|||||||||
|
安裝法蘭形式
|
滑動可調式法蘭
|
||||||||||
|
助燃空氣量調節方式
|
同步伺服電動調節
|
||||||||||
|
燃氣入口接口尺寸
|
1”
|
1”
|
1”
|
1 1/2”
|
1 1/2”
|
1 1/2”
|
1 1/2”
|
1 1/2”
|
2”
|
||
英文介紹：
PGseries ofsmallsingle sectiongas burners
Natural gas (NG, LNG), liquefied petroleum gas (LPG) as fuel; automatic on / off control single section.
Applicable to small and medium sized boilers, water heaters, stove, paint rooms, paint equipment, die-casting machine, drying equipment, heat treatment equipment and other small energy equipment. It’s easy to install and economical.
一．Safe and reliableautomaticprocess control
1. Automatic control of operation, automatic monitoring, equipped with safe control system.
2. It’s automatic start / stop depends on the parameters such as temperature or pressure of the device, load control is simple and convenient；
3. Equipped gas valve with safety switch and flow control features to ensure the safety of gas supply and cut off；
4. Ion sensing flame monitoring device with unexpected flameout protection and ensure security and stability of flame；
5. With gas and air pressure protection switch, external control connections can be achieved easily and ensure safe operation.。
二．Good combustionperformance, easy maintenance
1. Air mixed design to ensure the combustion stability, security and adequacy；
2. Combustion volume and the amount of combustion air power range can be adjusted, output control and good combustion can be achieved through this adjustment；
3. Combustion head and steady flame burning device assemblies, without removing the burner, you can easily remove the internal components of maintenance；
4. Sliding mounting flange, the installation of combustion cylinder length can be adjusted, Non-standard lengths are also available to suit different furnace structure models；
Technical parameters of PGseries ofsmallsingle sectiongas burners
|
Model
|
PG6/N
|
PG10/N
|
PG17/N
|
PG26/N
|
PG40/N
|
PG60/N
|
|
|
Output Power
|
KW
|
23-70
|
46-116
|
81-197
|
116-302
|
174-646
|
232-696
|
|
104kcal/h
|
2-6
|
4-10
|
7-17
|
10-26
|
15-40
|
20-60
|
|
|
Control
|
ON-OFF
|
||||||
|
Fuel
|
NG、LNG
|
||||||
|
Gas pressure
|
Pa
|
2000
|
|||||
|
MmH2O
|
200
|
||||||
|
pressure range
|
Pa
|
1500-5000
|
|||||
|
MmH2O
|
150-500
|
||||||
|
Calorific value
|
MJ/NM3
|
35.53(8500Kcal/Nm3)
|
|||||
|
Temperature
|
degree Celsius
|
-15~60
|
|||||
|
Power Source
|
AC220V/50HZ
|
AC380V/50HZ
|
|||||
|
Motor
|
KW
|
0.12
|
0.18
|
0.18
|
0.25
|
0.55
|
1.1
|
|
Security Level
|
IP
|
40
|
|||||
|
Mounting flange
|
Slidingadjustableflange
|
||||||
|
Connection Size
|
3/4”
|
3/4”
|
3/4”
|
1”
|
1 1/2”
|
1 1/2”
|
|
|
Model
|
PG6/L
|
PG10/L
|
PG17/L
|
PG26/L
|
PG40/L
|
PG60/L
|
|
|
Output Power
|
KW
|
23-70
|
46-116
|
81-197
|
116-302
|
174-464
|
232-696
|
|
104kcal/h
|
2-6
|
4-10
|
7-17
|
10-26
|
15-40
|
20-60
|
|
|
Control
|
ON-OFF
|
||||||
|
Fuel
|
LPG
|
||||||
|
Gas pressure
|
Pa
|
2800
|
|||||
|
MmH2O
|
280
|
||||||
|
pressure range
|
Pa
|
2000-5000
|
|||||
|
MmH2O
|
200-500
|
||||||
|
Calorific value
|
MJ/NM3
|
35.53(8500Kcal/Nm3)
|
|||||
|
Temperature
|
degree Celsius
|
-15~60
|
|||||
|
Power Source
|
AC220/50HZ
|
AC380/50HZ
|
|||||
|
Motor
|
KW
|
0.12
|
0.18
|
0.18
|
0.25
|
0.55
|
1.1
|
|
Security Level
|
IP
|
40
|
|||||
|
Mounting flange
|
Slidingadjustableflange
|
||||||
|
Connection Size
|
3/4”
|
3/4”
|
3/4”
|
3/4”
|
1”
|
1”
|
|
