G-PN16DJ G-PN16DJU GL-10C
|
 |
| |

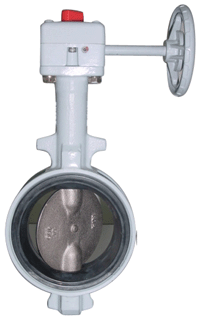

球墨鑄鐵DJ型蝶閥(鍋輪式) KITZ 北澤 |
| DJ Series Ductile lron Butterfly Valves, Gear Operated |
|
|
|
|
材質[Materials]
| 零件[Parts] |
材質 |
| 閥體[Body] |
球墨鑄鐵 |
| 閥桿[Stem] |
13%Cr不銹鋼 |
| 碟板[Disc] |
球墨鑄鐵
304型不銹鋼 |
| O型圈[O-ring] |
橡膠 |
| 橡膠密封墊[Sest rubber] |
橡膠 |
尺寸 [Dimensions] (mm)
| DN |
mm |
| 50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
|
| inch |
| 2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
|
| d |
| 50 |
65 |
80 |
100 |
125 |
150 |
197 |
246 |
295 |
334 |
385 |
|
| H |
| 226 |
234 |
252 |
262 |
290 |
302 |
365 |
506 |
531 |
600 |
655 |
|
| L |
| 43 |
46 |
46 |
52 |
56 |
56 |
60 |
68 |
78 |
78 |
102 |
|
| D |
| 90 |
104 |
124 |
146 |
176 |
206 |
257 |
312 |
364 |
407 |
466 |
|
| C |
| 120 |
140 |
160 |
185 |
225 |
260 |
305 |
380 |
430 |
480 |
540 |
|
| D1 |
| 110 |
110 |
110 |
110 |
110 |
110 |
170 |
310 |
310 |
360 |
360 |
|
| L1 |
| 135 |
135 |
135 |
135 |
150 |
150 |
180 |
280 |
280 |
310 |
310 |
|
| E |
| 96 |
96 |
96 |
96 |
96 |
96 |
148 |
221 |
221 |
269 |
269 |
|
|
| PN16 |
球墨鑄鐵DJ型碟閥(手柄式) KITZ 北澤 |
| DJ Series Ductile lron Butterfly Valves,lever Opersted |
|
|
PN16DJ
PN16DJE
PN16DJU
PN16DJUE
|
 |
|
|
材質[Materials]
| 零件[Parts] |
材質 |
| 閥體[Body] |
球墨鑄鐵 |
| 閥桿[Stem] |
13%Cr不銹鋼 |
| 碟板[Disc] |
球墨鑄鐵
304型不銹鋼 |
| O型圈[O-ring] |
橡膠 |
| 橡膠密封墊[Seat rubber] |
橡膠 |
尺寸 [Dimensions] (mm)
|
|
